Agent Patterns
Disclaimer: This post has been translated to English using a machine translation model. Please, let me know if you find any mistakes.
In my previous post, I explained how to use LangGraph to create agents.
So in this we are going to look at the different patterns of agents we can build and we will do it with LangGraph.
Note: We will start from the most basic model consisting of a chatbot with an LLM and progress to more complex architectures.
Note: Whenever possible, we will use
Qwen2-72B-Instructto be able to use it for free with Hugging Face.
Prompt responder (chain block)
It is the most basic model; the LLM receives a prompt and returns a response.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def chatbot_function(state: State):
return {"messages": [llm.invoke(state["messages"])]}
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("chatbot_node", chatbot_function)
# Add edges
graph_builder.add_edge(START, "chatbot_node")
graph_builder.add_edge("chatbot_node", END)
# Compile the graph
graph = graph_builder.compile()
# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
Let's test it out
from langchain_core.messages import HumanMessagemessages = [HumanMessage(content="Hello, how are you?")]result = graph.invoke({"messages": messages})result["messages"][-1].pretty_print()
================================== Ai Message ==================================Hello! I'm doing well, thank you for asking. How about you? How can I assist you today?
Chain of blocks

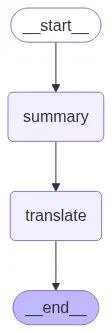

When a task can be divided into several subtasks, we can use a chain of blocks. For example, if we want to summarize and translate a text, we can do it in two steps:
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_core.messages import SystemMessage
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def summary(state: State):
input_text = state["messages"][-1].content
prompt = f"Summarize the following text: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
def translate(state: State):
input_text = state["messages"][-1].content
prompt = f"Translate the following text to Spanish: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("summary", summary)
graph_builder.add_node("translate", translate)
# Add edges
graph_builder.add_edge(START, "summary")
graph_builder.add_edge("summary", "translate")
graph_builder.add_edge("translate", END)
# Compile the graph
graph = graph_builder.compile()
# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessagetext = """Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way."""messages = [HumanMessage(content=text)]result = graph.invoke({"messages": messages})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data, enabling them to produce human-like text, translate languages, create various types of creative content, and provide informative answers to questions.================================== Ai Message ==================================Los modelos de lenguaje grandes son sistemas de IA avanzados entrenados con extensos datos de texto, lo que les permite producir texto similar al humano, traducir idiomas, crear diversos tipos de contenido creativo y proporcionar respuestas informativas a preguntas.

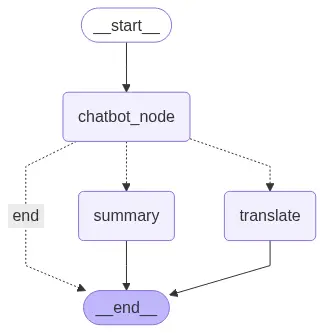

Routing
Another thing we can do is create several routes based on the problem and choose the one that best fits our problem. Let's look at an example where the user can choose between summarizing or translating a text.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_core.messages import SystemMessage, HumanMessage
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def chatbot_function(state: State):
return {"messages": [llm.invoke(state["messages"])]}
def summary(state: State):
input_text = state["messages"][-1].content
prompt = f"Summarize the following text: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
def translate(state: State):
input_text = state["messages"][-1].content
prompt = f"Translate the following text to Spanish: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
# Decision function for conditional edges
def decide_next_step(state: State) -> str:
"""
Decides the next step after the chatbot_node.
It checks the user's last message for keywords like 'summarize' or 'translate'.
"""
# Filter out human messages from the state
user_messages = [msg for msg in state["messages"] if isinstance(msg, HumanMessage)]
if not user_messages:
# If there are no human messages, default to ending the process
return "end"
# Get the content of the last human message
last_user_message_content = user_messages[-1].content.lower()
if "summarize" in last_user_message_content or "resumir" in last_user_message_content:
# If the user asked to summarize
return "summary"
elif "translate" in last_user_message_content or "traducir" in last_user_message_content:
# If the user asked to translate
return "translate"
else:
# Otherwise, end the process
return "end"
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("chatbot_node", chatbot_function)
graph_builder.add_node("summary", summary)
graph_builder.add_node("translate", translate)
# Add edges
graph_builder.add_edge(START, "chatbot_node")
# Add conditional edges from chatbot_node
# The decide_next_step function will determine which path to take
graph_builder.add_conditional_edges(
"chatbot_node", # The node where the decision is made
decide_next_step, # The function that makes the decision
{ # A dictionary mapping decision outcomes to next nodes
"summary": "summary", # If decide_next_step returns "summary", go to the "summary" node
"translate": "translate", # If decide_next_step returns "translate", go to the "translate" node
"end": END # If decide_next_step returns "end", end the graph
}
)
# Add edges to end the graph after summary or translate
graph_builder.add_edge("summary", END)
graph_builder.add_edge("translate", END)
# Compile the graph
graph = graph_builder.compile()
# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessagetext = """Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way."""prompt = f"Summarize the following text: {text}"messages = [HumanMessage(content=prompt)]result = graph.invoke({"messages": messages})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Summarize the following text: Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data, enabling them to produce human-like text, translate languages, create various types of creative content, and provide informative answers to questions.================================== Ai Message ==================================Large language models are sophisticated AI systems trained on vast amounts of text data, which allows them to generate human-like text, translate languages, produce creative content, and answer questions informatively.
from langchain_core.messages import HumanMessagetext = """Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way."""prompt = f"Translate the following text to Spanish: {text}"messages = [HumanMessage(content=prompt)]result = graph.invoke({"messages": messages})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Translate the following text to Spanish: Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way.================================== Ai Message ==================================Los modelos de lenguaje grandes son sistemas de IA potentes entrenados en enormes cantidades de datos de texto. Pueden generar texto similar al humano, traducir idiomas, escribir diversos tipos de contenido creativo y responder a tus preguntas de manera informativa.================================== Ai Message ==================================Los grandes modelos de lenguaje son sistemas de IA potentes entrenados en enormes cantidades de datos de texto. Pueden generar texto similar al humano, traducir idiomas, escribir diversos tipos de contenido creativo y responder a tus preguntas de manera informativa.

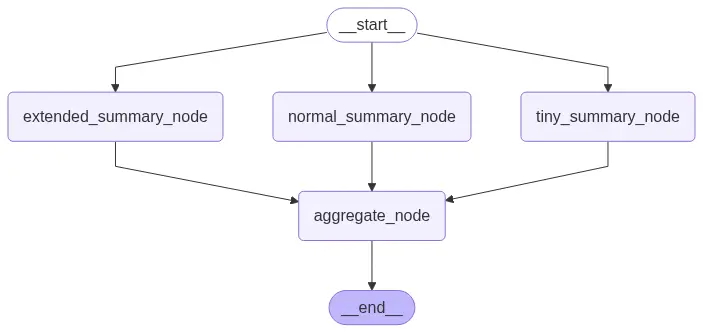

Parallelization
When a task is very important or complex, we can parallelize it so that different LLMs can execute it. Then we pass the result to an LLM to combine them. Let's look at an example where we have three LLMs that summarize a text in different ways and then combine them.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_core.messages import SystemMessage, HumanMessage
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
tiny_summary: str
normal_summary: str
extended_summary: str
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def tiny_summary(state: State):
input_text = state["messages"][-1].content
prompt = f"Summarize the following text in 10 words: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response], "tiny_summary": llm_response.content}
def normal_summary(state: State):
input_text = state["messages"][-1].content
prompt = f"Summarize the following text: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response], "normal_summary": llm_response.content}
def extended_summary(state: State):
input_text = state["messages"][-1].content
prompt = f"Summarize the following text in 100 words: {input_text}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response], "extended_summary": llm_response.content}
def aggregate(state: State):
prompt = f"Combine the following summaries into a single one: {state['tiny_summary']}, {state['normal_summary']}, {state['extended_summary']}"
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("tiny_summary_node", tiny_summary)
graph_builder.add_node("normal_summary_node", normal_summary)
graph_builder.add_node("extended_summary_node", extended_summary)
graph_builder.add_node("aggregate_node", aggregate)
# Add edges
graph_builder.add_edge(START, "tiny_summary_node")
graph_builder.add_edge(START, "normal_summary_node")
graph_builder.add_edge(START, "extended_summary_node")
graph_builder.add_edge("tiny_summary_node", "aggregate_node")
graph_builder.add_edge("normal_summary_node", "aggregate_node")
graph_builder.add_edge("extended_summary_node", "aggregate_node")
graph_builder.add_edge("aggregate_node", END)
# Compile the graph
graph = graph_builder.compile()
# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessagetext = """Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way."""messages = [HumanMessage(content=text)]result = graph.invoke({"messages": messages})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data, enabling them to produce human-like text, translate languages, create diverse content, and provide informative answers to questions. These models leverage their vast training data to understand context and generate responses that are often indistinguishable from those written by humans, making them useful in various applications such as writing, translation, and customer service.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data, enabling them to produce human-like text, translate languages, create various types of creative content, and provide informative answers to questions.================================== Ai Message ==================================AI models trained on text data generate human-like responses, translations, and content.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data, enabling them to produce human-like text, translate languages, create diverse and creative content, and provide informative answers to questions. These models leverage their vast training data to understand context and generate responses that are often indistinguishable from those written by humans, making them useful in various applications such as writing, translation, and customer service.

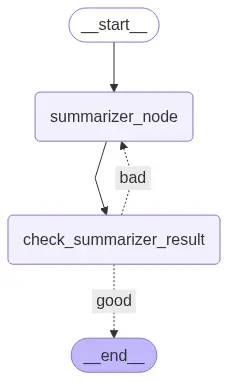

Evaluator-optimizer (reflection pattern)
Another way to solve complex tasks is to have one LLM to solve the task and another LLM to evaluate the result, so they run in a loop until the evaluator considers that the work has been completed correctly. Let's look at an example where one LLM adds 1 to a number and another checks if the number is 10.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_core.messages import SystemMessage, HumanMessage, AIMessage
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
number: int
evaluator: str
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def agregate_1(state: State):
if state.get("number", None) is None:
input_text = state["messages"][-1].content
prompt = f"Get the number from the following text: {input_text}. Respond only with the number."
number_str = llm.invoke(prompt)
number = int(number_str.content)
state["number"] = number
number_state = state["number"]
number_plus_1 = number_state + 1
response = AIMessage(content=f"[Agregator] --> The number is {number_state} and the next number is {number_plus_1}")
return {"messages": [response], "number": number_plus_1, "evaluator": "no"}
def evaluator(state: State):
prompt = f"Is the following number {state['number']} equal to 10? Respond only with 'yes' or 'no'."
result = llm.invoke(prompt)
number_state = state["number"]
response = AIMessage(content=f"[Evaluator] --> Is the following number {number_state} equal to 10? Result: {result.content}")
return {"messages": [response], "evaluator": result.content, "number": number_state}
def decide_next_step(state: State):
if state["evaluator"] == "yes":
return END
else:
return "agregate_1_node"
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("agregate_1_node", agregate_1)
graph_builder.add_node("evaluator_node", evaluator)
# Add edges
graph_builder.add_edge(START, "agregate_1_node")
graph_builder.add_edge("agregate_1_node", "evaluator_node")
graph_builder.add_conditional_edges(
"evaluator_node",
decide_next_step,
{
"agregate_1_node": "agregate_1_node",
END: END
}
)
# Compile the graph
graph = graph_builder.compile()

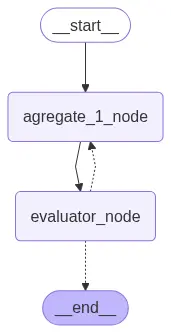

# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessageprompt = "Start the process with the number 1"messages = [HumanMessage(content=prompt)]result = graph.invoke({"messages": messages}, {"number": None})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Start the process with the number 1================================== Ai Message ==================================[Agregator] --> The number is 1 and the next number is 2================================== Ai Message ==================================[Evaluator] --> Is the following number 2 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 2 and the next number is 3================================== Ai Message ==================================[Evaluator] --> Is the following number 3 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 3 and the next number is 4================================== Ai Message ==================================[Evaluator] --> Is the following number 4 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 4 and the next number is 5================================== Ai Message ==================================[Evaluator] --> Is the following number 5 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 5 and the next number is 6================================== Ai Message ==================================[Evaluator] --> Is the following number 6 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 6 and the next number is 7================================== Ai Message ==================================[Evaluator] --> Is the following number 7 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 7 and the next number is 8================================== Ai Message ==================================[Evaluator] --> Is the following number 8 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 8 and the next number is 9================================== Ai Message ==================================[Evaluator] --> Is the following number 9 equal to 10? Result: no================================== Ai Message ==================================[Agregator] --> The number is 9 and the next number is 10================================== Ai Message ==================================[Evaluator] --> Is the following number 10 equal to 10? Result: yes
Agent with tools (ReAct pattern)
Note: I will have to solve this pattern with Sonnet
Another possibility is to provide the agent with tools
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langgraph.prebuilt import ToolNode, tools_condition
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_anthropic import ChatAnthropic
from langchain_core.messages import SystemMessage, HumanMessage, AIMessage
from langchain_core.tools import tool
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
ANTHROPIC_TOKEN = os.getenv("ANTHROPIC_LANGGRAPH_API_KEY")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
# Tools
@tool
def multiply(a: int, b: int) -> int:
"""Multiply a and b.
Args:
a: first int
b: second int
Returns:
The product of a and b.
"""
return a * b
tools_list = [multiply]
# Create the LLM model
llm = ChatAnthropic(model="claude-3-7-sonnet-20250219", api_key=ANTHROPIC_TOKEN)
llm_with_tools = llm.bind_tools(tools_list)
# Function
def chatbot_function(state: State):
system_message = "You are a helpful assistant that can use tools to answer questions. Once you have the result of a tool, provide a final answer without calling more tools."
messages = [SystemMessage(content=system_message)] + state["messages"]
return {"messages": [llm_with_tools.invoke(messages)]}
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("chatbot_node", chatbot_function)
tool_node = ToolNode(tools=tools_list)
graph_builder.add_node("tools", tool_node)
# Add edges
graph_builder.add_edge(START, "chatbot_node")
graph_builder.add_conditional_edges("chatbot_node", tools_condition)
graph_builder.add_edge("tools", "chatbot_node")
graph_builder.add_edge("chatbot_node", END)
# Compile the graph
graph = graph_builder.compile()
# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessageprompt = "Multiply 2 and 3"messages = [HumanMessage(content=prompt)]result = graph.invoke({"messages": messages}, {"number": None})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Multiply 2 and 3================================== Ai Message ==================================[{'text': "I'll calculate the product of 2 and 3 for you using the multiply function.", 'type': 'text'}, {'id': 'toolu_01BEDxEjrJX51kGLfYENBEot', 'input': {'a': 2, 'b': 3}, 'name': 'multiply', 'type': 'tool_use'}]Tool Calls:multiply (toolu_01BEDxEjrJX51kGLfYENBEot)Call ID: toolu_01BEDxEjrJX51kGLfYENBEotArgs:a: 2b: 3================================= Tool Message =================================Name: multiply6================================== Ai Message ==================================The product of 2 and 3 is 6.
Planning pattern
In this case, an LLM breaks down the problem into several tasks and assigns them to other agents, then another LLM combines the responses from the agents to provide a final answer. Let's look at the problem of summarizing and translating a text.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from langchain_core.messages import SystemMessage, HumanMessage
from huggingface_hub import login
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
# State
class State(TypedDict):
messages: Annotated[list, add_messages]
text_to_summarize: str
text_to_translate: str
summary: str
translation: str
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm = ChatHuggingFace(llm=model)
# Function
def planner_function(state: State):
input_text = state["messages"][-1].content
text_to_summarize = f"Summarize the following text: {input_text}"
text_to_translate = f"Translate the following text to Spanish: {input_text}"
return {
"text_to_summarize": text_to_summarize,
"text_to_translate": text_to_translate
}
def summary_function(state: State):
input_text = state["text_to_summarize"]
llm_response = llm.invoke(input_text)
summary = llm_response.content
return {"messages": [llm_response], "summary": summary}
def translate_function(state: State):
input_text = state["text_to_translate"]
llm_response = llm.invoke(input_text)
translation = llm_response.content
return {"messages": [llm_response], "translation": translation}
def aggregate_function(state: State):
prompt = f"""Combine the following summary and translation into a single one:
SUMMARY: {state['summary']}
TRANSLATION: {state['translation']}"""
llm_response = llm.invoke(prompt)
return {"messages": [llm_response]}
# Start to build the graph
graph_builder = StateGraph(State)
# Add nodes to the graph
graph_builder.add_node("planner_node", planner_function)
graph_builder.add_node("summary_node", summary_function)
graph_builder.add_node("translate_node", translate_function)
graph_builder.add_node("aggregate_node", aggregate_function)
# Add edges
graph_builder.add_edge(START, "planner_node")
graph_builder.add_edge("planner_node", "summary_node")
graph_builder.add_edge("planner_node", "translate_node")
graph_builder.add_edge("summary_node", "aggregate_node")
graph_builder.add_edge("translate_node", "aggregate_node")
graph_builder.add_edge("aggregate_node", END)
# Compile the graph
graph = graph_builder.compile()

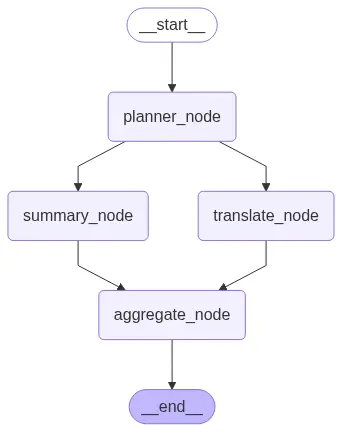

# Display the graph
try:
display(Image(graph.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
from langchain_core.messages import HumanMessagetext = """Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way."""messages = [HumanMessage(content=text)]result = graph.invoke({"messages": messages})for message in result["messages"]:message.pretty_print()
================================ Human Message =================================Large language models are powerful AI systems trained on vast amounts of text data.They can generate human-like text, translate languages, write different kinds of creative content, and answer your questions in an informative way.================================== Ai Message ==================================Large language models are advanced AI systems trained on extensive text data. These models can produce text that resembles human writing, translate between languages, create various types of creative content, and provide informative answers to questions.================================== Ai Message ==================================Los grandes modelos de lenguaje son potentes sistemas de IA entrenados con enormes cantidades de datos de texto. Pueden generar texto similar al humano, traducir idiomas, escribir diversos tipos de contenido creativo y responder tus preguntas de manera informativa.================================== Ai Message ==================================Los grandes modelos de lenguaje son potentes sistemas de IA entrenados con enormes cantidades de datos de texto. Estos modelos pueden generar texto similar al humano, traducir entre idiomas, crear diversos tipos de contenido creativo y proporcionar respuestas informativas a tus preguntas.

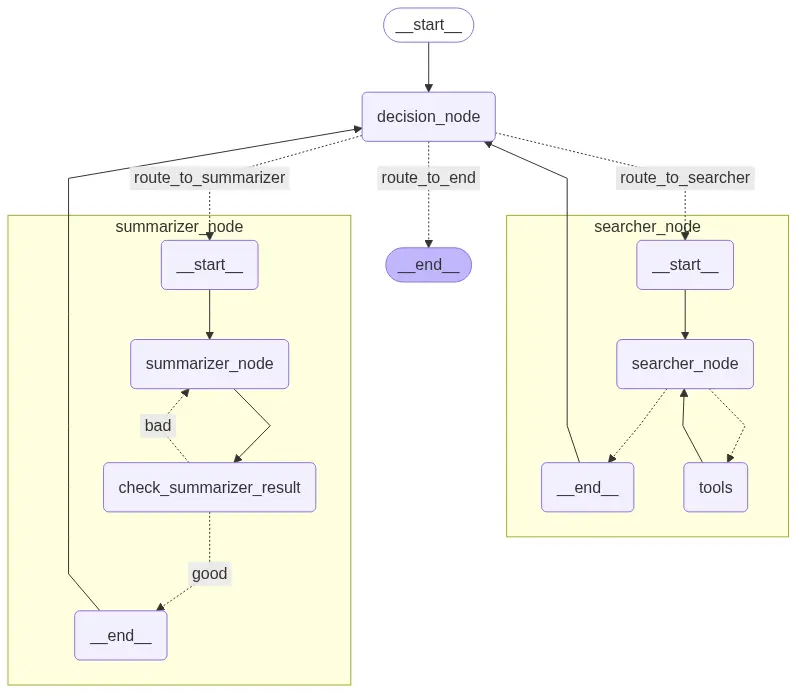

Multi agent pattern
In this case, we have a coordinator agent that is responsible for assigning tasks to the agents. Additionally, agents can request tasks from each other.
This would be a possible workflow:
Let's do a little deep research
Worker 1: News Agent
We create the first worker, an agent responsible for searching the internet and generating extensive reports, requesting more than 200 words. Additionally, I will create a checkpoint for it to have context of what it has already searched.
from typing import Annotated
from typing_extensions import TypedDict
from langgraph.graph import StateGraph, START, END
from langgraph.graph.message import add_messages
from langchain_huggingface import HuggingFaceEndpoint, ChatHuggingFace
from huggingface_hub import login
from langchain_community.utilities.tavily_search import TavilySearchAPIWrapper
from langchain_community.tools.tavily_search import TavilySearchResults
from langchain_core.messages import SystemMessage, ToolMessage
from langgraph.prebuilt import ToolNode, tools_condition
from langgraph.checkpoint.memory import MemorySaver
from IPython.display import Image, display
import os
os.environ["LANGCHAIN_TRACING_V2"] = "false" # Disable LangSmith tracing
import dotenv
dotenv.load_dotenv()
HUGGINGFACE_TOKEN = os.getenv("HUGGINGFACE_LANGGRAPH")
TAVILY_API_KEY = os.getenv("TAVILY_LANGGRAPH_API_KEY")
# State
class State_searcher(TypedDict):
messages: Annotated[list, add_messages]
# Tools
wrapper = TavilySearchAPIWrapper(tavily_api_key=TAVILY_API_KEY)
tool_search = TavilySearchResults(api_wrapper=wrapper, max_results=10)
tools_searcher_list = [tool_search]
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model_searcher = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm_searcher = ChatHuggingFace(llm=model_searcher)
# Create the LLM with tools
llm_searcher_with_tools = llm_searcher.bind_tools(tools_searcher_list)
# Tool node
tool_searcher_node = ToolNode(tools=tools_searcher_list)
# Functions
def searcher_function(state: State_searcher):
# Check if the last message is a ToolMessage
if state["messages"] and isinstance(state["messages"][-1], ToolMessage):
# If it is, it means the tool has run, so we pass the messages as they are.
return {"messages": state["messages"]}
system_prompt = """You are a helpful assistant.
Your task is to decide if you need to search the web for information based on the user's query.
If you need to search the web, invoke the available search tool.
Do NOT process or summarize the search results. Simply return the raw output from the search tool.
If you don't need to search, respond to the user directly.
The document must to have more than 200 words.
"""
messages = [SystemMessage(content=system_prompt)] + state["messages"]
return {"messages": [llm_searcher_with_tools.invoke(messages)]}
# Start to build the graph
graph_searcher = StateGraph(State_searcher)
# Add nodes to the graph
graph_searcher.add_node("searcher_node", searcher_function)
graph_searcher.add_node("tools", tool_searcher_node)
# Add edges
graph_searcher.add_edge(START, "searcher_node")
graph_searcher.add_conditional_edges( "searcher_node", tools_condition)
graph_searcher.add_edge("tools", "searcher_node")
# Compile the graph
memory_searcher = MemorySaver()
graph_searcher_compiled = graph_searcher.compile(checkpointer=memory_searcher)
# Display the graph
try:
display(Image(graph_searcher_compiled.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
Let's test it, I'm going to ask for the finalists of this year's (2025) Champions League, which obviously is not in the LLM's knowledge.
from langchain_core.messages import HumanMessageUSER1_THREAD_ID = "1"config_USER1 = {"configurable": {"thread_id": USER1_THREAD_ID}}prompt = "Who are the Champions League 2025 finalists?"messages = [HumanMessage(content=prompt)]result_searcher = graph_searcher_compiled.invoke({"messages": messages}, config=config_USER1)for message in result_searcher["messages"]:message.pretty_print()
================================ Human Message =================================Who are the Champions League 2025 finalists?================================== Ai Message ==================================Tool Calls:tavily_search_results_json (0)Call ID: 0Args:query: Champions League 2025 finalists================================= Tool Message =================================Name: tavily_search_results_json[{"title": "2025 UEFA Champions League final: Munich Football Arena", "url": "https://www.uefa.com/uefachampionsleague/news/0283-186742eb3c74-d5eb4afca229-1000--2025-uefa-champions-league-final-munich-football-arena/", "content": "2024/25 Champions League final date The 2025 Champions League final between Paris and Inter takes place on Saturday 31 May 2025. It will be culmination of the 70th season of Europe's elite club competition and the 33rd since it was renamed the UEFA Champions League. What do the Champions League winners get? [...] MoreTeamsNew formatNewsFinalHistorySeasonsAll-time statsVideoTeamsMost titlesAboutStore Favourite team UEFA Champions League - 2025 UEFA Champions League final: Munich Football Arena - News Go back 2025 UEFA Champions League final: Munich Football Arena Wednesday, May 7, 2025 Article summary The 2024/25 UEFA Champions League final between Paris and Inter will take place at the Munich Football Arena. Article top media content [...] Your custom access to: and much more! Your custom access to: and much more! We Care About Your Privacy", "score": 0.8825193}, {"title": "2025 UEFA Champions League final: All you need to know", "url": "https://www.uefa.com/uefachampionsleague/news/0296-1d2ab6f54da7-c43a66bc7b77-1000--2025-uefa-champions-league-final-all-you-need-to-know/", "content": "UEFA.com works better on other browsers For the best possible experience, we recommend using Chrome, Firefox or Microsoft Edge. Skip to main content UEFA Champions League Favourite team UEFA Champions League - 2025 UEFA Champions League final: All you need to know - News 2025 UEFA Champions League final: All you need to know Wednesday, May 7, 2025 Article summary The 2024/25 UEFA Champions League final between Paris and Inter will take place at the Munich Football Arena. [...] Paris will face Inter in the final. Inter were the first side to book their place in the decider courtesy of their incredible 7-6 aggregate victory over Barcelona in the semi-finals. The following night, Paris joined them thanks to a 3-1 overall success against Arsenal. Barcelona vs Inter: Every goal from the epic semi-final Where is the 2025 Champions League final? [...] Live 09/05/2025 Olympiacos earn automatic place in 2025/26 league phase thanks to Champions League rebalancing ---------------------------------------------------------------------------------------------- Olympiacos have earned a league phase spot next season since UEFA Champions League finalists Paris and Inter have already qualified via their domestic league position. Who will perform before the Champions League final?", "score": 0.82694983}, {"title": "Champions League final: Paris vs Inter – meet the teams - UEFA.com", "url": "https://www.uefa.com/uefachampionsleague/news/0299-1db3ed7babb3-e6227af6104f-1000--champions-league-final-paris-vs-inter-meet-the-teams/", "content": "MoreTeamsNew formatNewsFinalHistorySeasonsAll-time statsVideoTeamsMost titlesAboutStore Favourite team UEFA Champions League - Champions League final: Paris vs Inter – meet the teams - News Go back Champions League final: Paris vs Inter – meet the teams Wednesday, May 7, 2025 Article summary Pivotal players, season so far, key stats; all you need to know about 2024/25 UEFA Champions League finalists Paris and Inter. Article top media content [...] Published Time: 5/7/2025 9:51:00 PM +00:00 Champions League final: Paris vs Inter – meet the teams | UEFA Champions League | UEFA.com Champions League Official Live football scores & Fantasy Get UEFA.com works better on other browsers For the best possible experience, we recommend using Chrome, Firefox or Microsoft Edge. Skip to main content UEFA.com Home About National associations Running competitions Development Sustainability News & media [...] Paris are the third French team to reach the final of the European Cup/UEFA Champions League more than once after Reims (1955/56, 1958/59) and Marseille (1990/91, 1992/93). All Paris' 2024/25 Champions League goals © 1998-2025 UEFA. All rights reserved. Last updated: Wednesday, May 7, 2025 UEFA Champions League", "score": 0.8190992}, {"title": "2025 Champions League semi-finals: matchups, bracket and dates ...", "url": "https://en.as.com/soccer/2025-champions-league-semi-finals-matchups-bracket-and-dates-of-the-games-n/", "content": "3:00 p.m. ET: Arsenal vs Paris Saint-Germain Wednesday, April 30: 3:00 p.m. ET: Barcelona vs Inter Milan Second legs: Tuesday, May 6: 3:00 p.m. ET: Inter Milan vs Barcelona Wednesday, May 7: 3:00 p.m. ET: Paris Saint-Germain vs Arsenal When and where is the 2025 Champions League final? The final is to be played at the Allianz Arena in Munich, Germany, on May 31. Related stories [...] Aston Villa 3-2 Paris Saint-Germain (4-5 on aggregate) Borussia Dortmund 3-1 Barcelona (3-5 on aggregate) Inter Milan 2-2 Bayern Munich (4-3 on aggregate) Real Madrid 1-2 Arsenal (1-5 on aggregate) Champions League bracket: When are the UCL semi-finals? The first legs of the Champions League semi-finals are due to be played on April 29 and 30. The second legs are scheduled for May 6 and 7. UCL semi-finals - schedule in full: First legs: Tuesday, April 29: [...] Fútbol Champions League Arsenal FC FC Barcelona PSG Inter Milan Comments0Rules Comments Rules Sign in to commentAlready have an account Complete your personal details to comment Complete data Your opinion will be published with first and last names We recommend these for you in Soccer", "score": 0.8051581}, {"title": "2025 UEFA Champions League final - Simple Wikipedia", "url": "https://simple.wikipedia.org/wiki/2025_UEFA_Champions_League_final", "content": "The 2025 UEFA Champions League final will be a match of the 2024–25 season, Europe's top club football tournament. It's the 70th season, and they changed the name to UEFA Champions League 33 seasons ago. The final will happen on May 31, 2025, at Allianz Arena in Munich, Germany.[1] It's the first final with the new Swiss-system format.[2] The winners will face the Europa League winners in the 2025 UEFA Super Cup. Match [change | change source] Details [change | change source] [...] Appearance move to sidebar hide From Simple English Wikipedia, the free encyclopedia 2025 UEFA Champions League finalThe Allianz Arena in Germany will host the final.Event2024–25 UEFA Champions LeagueDate31 May 2025 (2025-05-31)VenueAllianz Arena, Munich← 20242026 → [...] Contents move to sidebar hide Beginning 1 MatchToggle Match subsection 1.1 Details 2 References 3 Other websites Toggle the table of contents 2025 UEFA Champions League final 22 languages العربية বাংলা Cymraeg Dansk English Español فارسی Français Bahasa Indonesia עברית Қазақша Bahasa Melayu 日本語 Português Română Русский Српски / srpski ไทย Türkçe Українська Tiếng Việt 中文 Change links Page Talk English Read Change Change source View history", "score": 0.8005209}, {"title": "UEFA Women's Champions League 2025 Final Full Match - YouTube", "url": "https://www.youtube.com/watch?v=xlf3HrJ35R4", "content": "May 24, 2025 -- Arsenal vs. Barcelona | UEFA Women's Champions League Final 2025. DAZN is proud to present a New Deal for women's football!", "score": 0.7206637}, {"title": "Europe's top soccer leagues: Titles, cup finals, UCL, relegation - ESPN", "url": "https://www.espn.com/soccer/story/_/id/44835154/europe-top-soccer-leagues-whats-was-decided-premier-league-laliga-bundesliga-serie-ligue-1", "content": "| GP | PTS | GD 1 - Liverpool | 38 | 84 | +45 2 - Arsenal | 38 | 74 | +35 3 - Man City | 38 | 71 | +28 4 - Chelsea | 38 | 69 | +21 5 - Newcastle | 38 | 66 | +21 6 - Aston Villa | 38 | 66 | +7 7 - Nottm Forest | 38 | 65 | +12 In 2025-26, the Premier League has been allocated five teams in the Champions League due to the performance of its clubs in Europe this season, meaning the top five will qualify for the UCL. Liverpool and Arsenal (71) have booked two of them.", "score": 0.6496014}]
It has returned a list of search results, now we are going to synthesize it.
Worker 2: news synthesizer agent
Now we create the second worker, an agent responsible for synthesizing the information from the reports of the other agents.
# State
class State_summarizer(TypedDict):
messages: Annotated[list, add_messages]
decision: str
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model_summarizer = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm_summarizer = ChatHuggingFace(llm=model_summarizer)
# Functions
def summarizer_function(state: State_summarizer):
system_prompt = """You are an advanced AI assistant specialized in summarizing complex information from multiple documents.
Your task is to process a list of provided documents (typically search results) and generate a comprehensive yet concise summary.
Key objectives for your summary:
1. **Accuracy:** Ensure all information is derived strictly from the provided documents. Do not infer or add external knowledge.
2. **Relevance:** Focus on the most important facts, findings, and answers related to the core topic of the documents.
3. **Clarity:** Write in clear, precise, and easily understandable language. Define any jargon if present in the source and necessary for understanding.
4. **Structure:** Organize the summary logically. Use paragraphs to separate distinct ideas. If helpful for the content, consider using bullet points for lists of key facts or findings.
5. **Conciseness:** Be thorough but avoid unnecessary repetition or overly verbose phrasing. Capture the essence efficiently.
6. **Neutrality:** Maintain an objective tone.
Synthesize the information into a coherent piece that gives a full picture of what the documents collectively state about the topic.
""" # End of the new system_prompt
messages = [SystemMessage(content=system_prompt)] + state["messages"]
summarizer_result = llm_summarizer.invoke(messages)
return {"messages": [summarizer_result]}
def check_summarizer_result(state: State_summarizer):
system_prompt = """You are a critical reviewer AI, tasked with validating text summaries against specific quality criteria.
You will receive an original text and a summary generated from it. The summary was intended to meet the following objectives:
- Accuracy (derived strictly from the original, no external knowledge).
- Relevance (focus on most important facts related to the core topic).
- Clarity (clear, precise, easily understandable language).
- Good Structure (logically organized, paragraphs/bullets if appropriate).
- Conciseness (thorough but not verbose).
- Neutrality (objective tone).
Carefully compare the summary against the original text.
If the summary successfully meets ALL the above objectives, return the single word "good".
If the summary fails to meet one or more of these objectives adequately, return the single word "bad".
Provide only "good" or "bad" as your response.
""" # End of new system_prompt
text_to_summarize = state["messages"][-2].content
summarizer_result = state["messages"][-1].content
prompt = f"""
Here is the summary:
{summarizer_result}
And here is the original text:
{text_to_summarize}
Please, return only one word, "good" or "bad".
"""
messages = [SystemMessage(content=system_prompt)] + [HumanMessage(content=prompt)]
decision = llm_summarizer.invoke(messages)
return {"decision": decision.content}
# Start to build the graph
graph_summarizer = StateGraph(State_summarizer)
# Add nodes to the graph
graph_summarizer.add_node("summarizer_node", summarizer_function)
graph_summarizer.add_node("check_summarizer_result", check_summarizer_result)
# Add edges
graph_summarizer.add_edge(START, "summarizer_node")
graph_summarizer.add_edge("summarizer_node", "check_summarizer_result")
graph_summarizer.add_conditional_edges(
source="check_summarizer_result",
path=lambda state: state["decision"],
path_map={
"good": END,
"bad": "summarizer_node"
}
)
# Compile the graph
memory_summarizer = MemorySaver()
graph_summarizer_compiled = graph_summarizer.compile(checkpointer=memory_summarizer)
# Display the graph
try:
display(Image(graph_summarizer_compiled.get_graph().draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
Let's test it, I'm going to pass the result of the first worker to see how it synthesizes it.
search_result = result_searcher["messages"][-1].contentmessages = [HumanMessage(content=search_result)]result_sumarizer = graph_summarizer_compiled.invoke({"messages": messages}, config=config_USER1)for message in result_sumarizer["messages"]:message.pretty_print()print("\nDecision on Summary:")decision = result_sumarizer.get("decision")if decision:print(decision)else:print("No decision was found.")print("--- End of Summarizer Graph Output ---")
================================ Human Message =================================[{"title": "2025 UEFA Champions League final: Munich Football Arena", "url": "https://www.uefa.com/uefachampionsleague/news/0283-186742eb3c74-d5eb4afca229-1000--2025-uefa-champions-league-final-munich-football-arena/", "content": "2024/25 Champions League final date The 2025 Champions League final between Paris and Inter takes place on Saturday 31 May 2025. It will be culmination of the 70th season of Europe's elite club competition and the 33rd since it was renamed the UEFA Champions League. What do the Champions League winners get? [...] MoreTeamsNew formatNewsFinalHistorySeasonsAll-time statsVideoTeamsMost titlesAboutStore Favourite team UEFA Champions League - 2025 UEFA Champions League final: Munich Football Arena - News Go back 2025 UEFA Champions League final: Munich Football Arena Wednesday, May 7, 2025 Article summary The 2024/25 UEFA Champions League final between Paris and Inter will take place at the Munich Football Arena. Article top media content [...] Your custom access to: and much more! Your custom access to: and much more! We Care About Your Privacy", "score": 0.8825193}, {"title": "2025 UEFA Champions League final: All you need to know", "url": "https://www.uefa.com/uefachampionsleague/news/0296-1d2ab6f54da7-c43a66bc7b77-1000--2025-uefa-champions-league-final-all-you-need-to-know/", "content": "UEFA.com works better on other browsers For the best possible experience, we recommend using Chrome, Firefox or Microsoft Edge. Skip to main content UEFA Champions League Favourite team UEFA Champions League - 2025 UEFA Champions League final: All you need to know - News 2025 UEFA Champions League final: All you need to know Wednesday, May 7, 2025 Article summary The 2024/25 UEFA Champions League final between Paris and Inter will take place at the Munich Football Arena. [...] Paris will face Inter in the final. Inter were the first side to book their place in the decider courtesy of their incredible 7-6 aggregate victory over Barcelona in the semi-finals. The following night, Paris joined them thanks to a 3-1 overall success against Arsenal. Barcelona vs Inter: Every goal from the epic semi-final Where is the 2025 Champions League final? [...] Live 09/05/2025 Olympiacos earn automatic place in 2025/26 league phase thanks to Champions League rebalancing ---------------------------------------------------------------------------------------------- Olympiacos have earned a league phase spot next season since UEFA Champions League finalists Paris and Inter have already qualified via their domestic league position. Who will perform before the Champions League final?", "score": 0.82694983}, {"title": "Champions League final: Paris vs Inter – meet the teams - UEFA.com", "url": "https://www.uefa.com/uefachampionsleague/news/0299-1db3ed7babb3-e6227af6104f-1000--champions-league-final-paris-vs-inter-meet-the-teams/", "content": "MoreTeamsNew formatNewsFinalHistorySeasonsAll-time statsVideoTeamsMost titlesAboutStore Favourite team UEFA Champions League - Champions League final: Paris vs Inter – meet the teams - News Go back Champions League final: Paris vs Inter – meet the teams Wednesday, May 7, 2025 Article summary Pivotal players, season so far, key stats; all you need to know about 2024/25 UEFA Champions League finalists Paris and Inter. Article top media content [...] Published Time: 5/7/2025 9:51:00 PM +00:00 Champions League final: Paris vs Inter – meet the teams | UEFA Champions League | UEFA.com Champions League Official Live football scores & Fantasy Get UEFA.com works better on other browsers For the best possible experience, we recommend using Chrome, Firefox or Microsoft Edge. Skip to main content UEFA.com Home About National associations Running competitions Development Sustainability News & media [...] Paris are the third French team to reach the final of the European Cup/UEFA Champions League more than once after Reims (1955/56, 1958/59) and Marseille (1990/91, 1992/93). All Paris' 2024/25 Champions League goals © 1998-2025 UEFA. All rights reserved. Last updated: Wednesday, May 7, 2025 UEFA Champions League", "score": 0.8190992}, {"title": "2025 Champions League semi-finals: matchups, bracket and dates ...", "url": "https://en.as.com/soccer/2025-champions-league-semi-finals-matchups-bracket-and-dates-of-the-games-n/", "content": "3:00 p.m. ET: Arsenal vs Paris Saint-Germain Wednesday, April 30: 3:00 p.m. ET: Barcelona vs Inter Milan Second legs: Tuesday, May 6: 3:00 p.m. ET: Inter Milan vs Barcelona Wednesday, May 7: 3:00 p.m. ET: Paris Saint-Germain vs Arsenal When and where is the 2025 Champions League final? The final is to be played at the Allianz Arena in Munich, Germany, on May 31. Related stories [...] Aston Villa 3-2 Paris Saint-Germain (4-5 on aggregate) Borussia Dortmund 3-1 Barcelona (3-5 on aggregate) Inter Milan 2-2 Bayern Munich (4-3 on aggregate) Real Madrid 1-2 Arsenal (1-5 on aggregate) Champions League bracket: When are the UCL semi-finals? The first legs of the Champions League semi-finals are due to be played on April 29 and 30. The second legs are scheduled for May 6 and 7. UCL semi-finals - schedule in full: First legs: Tuesday, April 29: [...] Fútbol Champions League Arsenal FC FC Barcelona PSG Inter Milan Comments0Rules Comments Rules Sign in to commentAlready have an account Complete your personal details to comment Complete data Your opinion will be published with first and last names We recommend these for you in Soccer", "score": 0.8051581}, {"title": "2025 UEFA Champions League final - Simple Wikipedia", "url": "https://simple.wikipedia.org/wiki/2025_UEFA_Champions_League_final", "content": "The 2025 UEFA Champions League final will be a match of the 2024–25 season, Europe's top club football tournament. It's the 70th season, and they changed the name to UEFA Champions League 33 seasons ago. The final will happen on May 31, 2025, at Allianz Arena in Munich, Germany.[1] It's the first final with the new Swiss-system format.[2] The winners will face the Europa League winners in the 2025 UEFA Super Cup. Match [change | change source] Details [change | change source] [...] Appearance move to sidebar hide From Simple English Wikipedia, the free encyclopedia 2025 UEFA Champions League finalThe Allianz Arena in Germany will host the final.Event2024–25 UEFA Champions LeagueDate31 May 2025 (2025-05-31)VenueAllianz Arena, Munich← 20242026 → [...] Contents move to sidebar hide Beginning 1 MatchToggle Match subsection 1.1 Details 2 References 3 Other websites Toggle the table of contents 2025 UEFA Champions League final 22 languages العربية বাংলা Cymraeg Dansk English Español فارسی Français Bahasa Indonesia עברית Қазақша Bahasa Melayu 日本語 Português Română Русский Српски / srpski ไทย Türkçe Українська Tiếng Việt 中文 Change links Page Talk English Read Change Change source View history", "score": 0.8005209}, {"title": "UEFA Women's Champions League 2025 Final Full Match - YouTube", "url": "https://www.youtube.com/watch?v=xlf3HrJ35R4", "content": "May 24, 2025 -- Arsenal vs. Barcelona | UEFA Women's Champions League Final 2025. DAZN is proud to present a New Deal for women's football!", "score": 0.7206637}, {"title": "Europe's top soccer leagues: Titles, cup finals, UCL, relegation - ESPN", "url": "https://www.espn.com/soccer/story/_/id/44835154/europe-top-soccer-leagues-whats-was-decided-premier-league-laliga-bundesliga-serie-ligue-1", "content": "| GP | PTS | GD 1 - Liverpool | 38 | 84 | +45 2 - Arsenal | 38 | 74 | +35 3 - Man City | 38 | 71 | +28 4 - Chelsea | 38 | 69 | +21 5 - Newcastle | 38 | 66 | +21 6 - Aston Villa | 38 | 66 | +7 7 - Nottm Forest | 38 | 65 | +12 In 2025-26, the Premier League has been allocated five teams in the Champions League due to the performance of its clubs in Europe this season, meaning the top five will qualify for the UCL. Liverpool and Arsenal (71) have booked two of them.", "score": 0.6496014}]================================== Ai Message ==================================### Summary of the 2025 UEFA Champions League Final#### Final Details- **Date:** Saturday, 31 May 2025- **Venue:** Allianz Arena, Munich, Germany- **Teams:** Paris Saint-Germain (Paris) vs. Inter Milan (Inter)- **Significance:** This will be the culmination of the 70th season of Europe's elite club competition and the 33rd since it was renamed the UEFA Champions League. It will also be the first final under the new Swiss-system format.#### Path to the Final- **Semi-final Matches:**- **First Legs:**- Tuesday, April 29: Barcelona vs. Inter Milan- Wednesday, April 30: Arsenal vs. Paris Saint-Germain- **Second Legs:**- Tuesday, May 6: Inter Milan vs. Barcelona- Wednesday, May 7: Paris Saint-Germain vs. Arsenal- **Semi-final Results:**- **Inter Milan:** Aggregated 7-6 victory over Barcelona- **Paris Saint-Germain:** Aggregated 3-1 victory over Arsenal#### Team Backgrounds- **Paris Saint-Germain:**- Third French team to reach the final of the European Cup/UEFA Champions League more than once, following Reims and Marseille.- Had a strong run, defeating Arsenal convincingly in the semi-finals.- **Inter Milan:**- Booked their place in the final with an epic 7-6 aggregate victory over Barcelona.- Known for their resilience and attacking prowess.#### Additional Information- **Pre-Final Performances:**- Inter's victory over Barcelona included a dramatic comeback, highlighting their strength and determination.- Paris Saint-Germain's consistent performance and tactical discipline were key in their semi-final win.- **Impact on European Leagues:**- Due to the performance of clubs in Europe, the Premier League has been allocated five teams in the 2025-26 UEFA Champions League, with Liverpool and Arsenal securing two of the spots.- **Pre-Final Event:**- There will be a performance before the Champions League final, though the artist or act has not been specified as of the latest update.This final promises to be an exciting culmination of the season, showcasing the best of European club football.Decision on Summary:good--- End of Summarizer Graph Output ---
We see that it has summarized the news
Main graph
Once we have the two workers, we can build the main graph.
# Entry Graph
class State_agent_pattern(TypedDict):
messages: Annotated[list, add_messages] # Holds all messages: user query, tool calls/results, summaries
agent_decision: str # Routing: "route_to_searcher", "route_to_summarizer", "route_to_end"
# Create the LLM model
login(token=HUGGINGFACE_TOKEN) # Login to HuggingFace to use the model
MODEL = "Qwen/Qwen2.5-72B-Instruct"
model_agent_pattern = HuggingFaceEndpoint(
repo_id=MODEL,
task="text-generation",
max_new_tokens=512,
do_sample=False,
repetition_penalty=1.03,
)
# Create the chat model
llm_agent_pattern = ChatHuggingFace(llm=model_agent_pattern)
# Functions
def decision_function(state: State_agent_pattern) -> dict:
"""
Decides the next action for the agent based on the current state of messages.
Updates 'agent_decision' to route to the searcher, summarizer, or end the process.
"""
current_messages = state.get("messages", [])
next_route = "route_to_searcher" # Default action
if not current_messages:
print("Warning: decision_function called with empty messages. Defaulting to search.")
return {"agent_decision": "route_to_searcher"}
last_message = current_messages[-1]
if isinstance(last_message, ToolMessage):
# Search results are available (ToolMessage). Next step: summarize.
next_route = "route_to_summarizer"
elif isinstance(last_message, AIMessage):
# AIMessage could be a direct answer from searcher or a summary from summarizer.
ai_content = getattr(last_message, 'content', "").strip()
if not ai_content:
print("Warning: AIMessage has no content. Defaulting to search.")
next_route = "route_to_searcher"
else:
# Use LLM to evaluate the AIMessage content
system_prompt_eval = """You are an expert content analyst.
Analyze the provided text. The text could be a direct answer to a query or a summary.
- If the text is a comprehensive and sufficient final answer, respond with "enough".
- If the text seems like raw search results that were not properly captured as a ToolMessage but as an AIMessage, or requires summarization, respond with "needs_summary".
- If the text is a summary, but it's insufficient and more searching/refinement is needed, respond with "search_again".
Respond with only one of: "enough", "needs_summary", "search_again".
"""
eval_messages = [
SystemMessage(content=system_prompt_eval),
HumanMessage(content=ai_content)
]
try:
llm_eval_decision_obj = llm_agent_pattern.invoke(eval_messages)
eval_decision_str = llm_eval_decision_obj.content.strip().lower()
if eval_decision_str == "enough":
next_route = "route_to_end"
elif eval_decision_str == "needs_summary":
next_route = "route_to_summarizer"
elif eval_decision_str == "search_again":
next_route = "route_to_searcher"
else:
print(f"Warning: LLM in decision_function (AIMessage eval) returned: '{eval_decision_str}'. Defaulting to end.")
next_route = "route_to_end" # Safer default for unrecognized LLM output
except Exception as e:
print(f"Error during LLM call in decision_function: {e}. Defaulting to search.")
next_route = "route_to_searcher"
elif isinstance(last_message, HumanMessage):
# Initial user query or a follow-up. Start by searching.
next_route = "route_to_searcher"
else:
print(f"Warning: decision_function encountered an unexpected last message type: {type(last_message)}. Defaulting to search.")
next_route = "route_to_searcher"
return {"agent_decision": next_route}
# Build the graph
agent_pattern_builder = StateGraph(State_agent_pattern)
# Add nodes
agent_pattern_builder.add_node("decision_node", decision_function)
agent_pattern_builder.add_node("searcher_node", graph_searcher.compile())
agent_pattern_builder.add_node("summarizer_node", graph_summarizer.compile())
# Add edges
agent_pattern_builder.add_edge(START, "decision_node")
agent_pattern_builder.add_conditional_edges(
source="decision_node",
path=lambda state: state["agent_decision"],
path_map={
"route_to_searcher": "searcher_node",
"route_to_summarizer": "summarizer_node",
"route_to_end": END
}
)
# Edges to loop back to the decision node after search or summarization
agent_pattern_builder.add_edge("searcher_node", "decision_node")
agent_pattern_builder.add_edge("summarizer_node", "decision_node")
# Compile the graph
graph_agent_pattern = agent_pattern_builder.compile()
# Setting xray to 1 will show the internal structure of the nested graph
try:
display(Image(graph_agent_pattern.get_graph(xray=1).draw_mermaid_png()))
except Exception as e:
print(f"Error al visualizar el grafo: {e}")
Let's test it by asking about Jules an asynchronous coding agent that came out a week ago (as of the writing of the post), so obviously it shouldn't be in the LLM's knowledge.
from langchain_core.messages import HumanMessage, AIMessageUSER2_THREAD_ID = "2"config_USER2 = {"configurable": {"thread_id": USER2_THREAD_ID}}prompt = "Can you explain me what is Jules asyncronous coding agent?"messages = [HumanMessage(content=prompt)]result_agent_pattern = graph_agent_pattern.invoke({"messages": messages}, config=config_USER2)for message in result_agent_pattern["messages"]:message.pretty_print()
================================ Human Message =================================Can you explain me what is Jules asyncronous coding agent?================================== Ai Message ==================================Tool Calls:tavily_search_results_json (0)Call ID: 0Args:query: Jules asynchronous coding agent================================= Tool Message =================================Name: tavily_search_results_json[{"title": "Build with Jules, your asynchronous coding agent - Google Blog", "url": "https://blog.google/technology/google-labs/jules/", "content": "Today, Jules is entering public beta, available to everyone. No waitlist. Worldwide, everywhere where the Gemini model is available. What is Jules? Jules is an asynchronous, agentic coding assistant that integrates directly with your existing repositories. It clones your codebase into a secure Google Cloud virtual machine (VM), understands the full context of your project, and performs tasks such as: [...] Google's Jules coding agent is now in public beta. Jules autonomously reads your code performs tasks like writing tests and fixing bugs. It works asynchronously in a secure cloud environment and offers features like audio changelogs and GitHub integration. Summaries were generated by Google AI. Generative AI is experimental. Share TwitterFacebookLinkedInMail Copy link [...] Subscribe Breadcrumb 1. 2. Technology 3. Google Labs Build with Jules, your asynchronous coding agent May 20, 2025 · 3 min read Share TwitterFacebookLinkedInMail Copy link Our autonomous coding agent, Jules, is now in public beta. Kathy Korevec Director, Product Management, Google Labs Read AI-generated summary General summary", "score": 0.91399205}, {"title": "Meet Jules: Google AI Coding Agent — Codex/Copilot Killer?", "url": "https://medium.com/@samarrana407/meet-jules-google-ai-coding-agent-codex-copilot-killer-bb9e38867436", "content": "The landscape of AI coding agents is currently experiencing explosive growth, with new tools emerging rapidly to assist developers. Among the latest and most intriguing entries is Google’s Jules, an AI agent they are specifically labeling as an “asynchronous coding agent.” This designation hints at a fundamental difference from some other AI tools we’ve seen, suggesting a potentially significant shift in how developers interact with AI assistants. [...] Jules, however, operates differently. It aligns more closely with the concept of autonomous coding agents like OpenAI’s Codex Agent (distinct from the model). The key distinction is the asynchronous nature. Instead of working interactively line-by-line, you assign Jules a specific, potentially complex coding task. The agent then takes ownership of that task, works on it independently in the background, and presents the completed work once it’s ready. This promises a step closer to the early [...] What Sets Jules Apart? Asynchronous vs. Interactive Agents Many developers are familiar with AI coding tools integrated directly into their IDEs, such as Cursor or Windsurf. These tools typically work alongside the developer in real-time, offering code suggestions, completing lines, or refactoring code as you type — essentially “babysitting” your IDE.", "score": 0.9051298}, {"title": "You can sign up for Google's AI coding tool Jules right now - Mashable", "url": "https://mashable.com/article/jules-google-ai-coding-tool-sign-up", "content": "According to a Google blog post, Jules is an "asynchronous, agentic coding assistant that integrates directly with your existing repositories. It clones your codebase into a secure Google Cloud virtual machine (VM), understands the full context of your project, and performs tasks." How to sign up for Jules right now To try Jules out for yourself, you can sign up at jules.google. Click "Try Jules" in the top right corner to create your own account.", "score": 0.8839694}, {"title": "Google releases its asynchronous Jules AI agent for coding - ZDNet", "url": "https://www.zdnet.com/article/google-releases-its-asynchronous-jules-ai-agent-for-coding-how-to-try-it-for-free/", "content": "Originally unveiled by Google Labs in December, Jules is positioned as a reliable, automated coding assistant that can manage a broad suite of time-consuming tasks on behalf of human users. The model is "asynchronous," which, in programming-speak, means it can start and work on tasks without having to wait for any single one of them to finish. Afterward, the model provides a full outline of the changes that were made to a user's code, providing clarity into its reasoning process. [...] Google releases its asynchronous Jules AI agent for coding - how to try it for free The race to deploy AI agents is heating up. At its annual I/O developer conference yesterday, Google announced that Jules, its new AI coding assistant, is now available worldwide in public beta. [...] As such, Jules offers some advanced coding capabilities. It can work directly within a user's codebase, for example, absorbing a project's full context and making decisions without the need for a sandbox (that is, a separate and controlled testing environment). It also integrates directly with GitHub, eliminating the need for developers to manually switch back and forth between coding platforms. Also: Gemini Pro 2.5 is a stunningly capable coding assistant - and a big threat to ChatGPT", "score": 0.86981434}, {"title": "Google Jules - Is this the end of Coding ? - YouTube", "url": "https://www.youtube.com/watch?v=2MjN1LpO60k", "content": "Google's new AI tool, Jules, is set to transform the coding landscape. As an asynchronous coding agent, Jules can autonomously handle tasks", "score": 0.8627572}, {"title": "Introducing Jules: An AI Coding Agent for GitHub - LinkedIn", "url": "https://www.linkedin.com/posts/shubhamsaboo_google-just-released-an-asynchronous-ai-coding-activity-7331143519350231040-JIyG", "content": "Google just released an Asynchronous AI Coding Agent...🤯 Powered by Gemini, it works on your GitHub Repos while you sleep. Submit a task. Go grab coffee. Come back to completed code. Jules doesn't just write code snippets. It's an Autonomous AI Agent that: ↳ Clones your entire GitHub repo ↳ Understands your full codebase context ↳ Fixes bugs and builds features independently ↳ Works on multiple tasks simultaneously ↳ Creates branches and prepares PRs for you The best part? You give it a task [...] and walk away. Jules runs in a secure cloud VM, handling everything while you focus on strategy, meetings, or other priorities. When it's done, you get: → A complete plan with reasoning → Code diffs showing exactly what changed → Real-time activity logs → Ready-to-review PRs Jules is like having a dedicated developer on your team. → One that never sleeps. → One that understands your project inside and out. → One that can juggle multiple features while you focus on strategy. The asynchronous", "score": 0.8252664}, {"title": "Jules - An Asynchronous Coding Agent", "url": "https://jules.google/", "content": "Jules does coding tasks you don't want to do. Jules does coding tasks you don't want to do. More time for the code you want to write, and everything else. Select your GitHub repository and branch. Write a detailed prompt for Jules. *coming soon* use "assign-to-jules" label in an issue to assign a task directly in GitHub. Jules fetches your repository, clones it to a Cloud VM, and develops a plan utilizing the latest Gemini 2.5 Pro model. Here is my plan: [...] I plan to update the following files to the new app directory structure. Jules provides a diff of the changes. Quickly browse and approve code edits. Jules creates a PR of the changes. Approve the PR, merge it to your branch, and publish it on GitHub. Also, you can get caught up fast. Jules creates an audio summary of the changes.", "score": 0.7771143}, {"title": "Jules - An Asynchronous Coding Agent (New Codex alternative from ...", "url": "https://www.reddit.com/r/ChatGPTCoding/comments/1kqompk/jules_an_asynchronous_coding_agent_new_codex/", "content": "It's 5 tasks per day. A task can have many separate messages.", "score": 0.6991933}, {"title": "Jules: An asynchronous coding agent | Hacker News", "url": "https://news.ycombinator.com/item?id=44034918", "content": "So, you can assign github issues to this thing, and it can handle them, merge the results in, and mark the bug as fixed?", "score": 0.6638657}]================================== Ai Message ==================================### Jules: An Asynchronous Coding Agent**Overview:**Jules is an asynchronous coding assistant developed by Google Labs, now available in public beta. It integrates directly with your existing code repositories, such as GitHub, and operates in a secure Google Cloud Virtual Machine (VM). The key feature of Jules is its asynchronous nature, meaning it can work on tasks independently in the background, without constant human oversight.**Key Features:**- **Asynchronous Task Handling:** Jules takes on specific coding tasks, works on them independently, and presents the completed work once ready. This allows developers to focus on strategic tasks and reduce repetitive coding chores.- **Full Codebase Understanding:** Jules clones your entire codebase into a secure cloud VM, where it gains a comprehensive understanding of your project's context. This enables it to make informed decisions and perform tasks more effectively.- **Task Execution:** Jules can handle a variety of tasks, including writing tests, fixing bugs, and building features. It can work on multiple tasks simultaneously, enhancing productivity.- **GitHub Integration:** The tool integrates seamlessly with GitHub, allowing you to assign tasks directly from GitHub issues. Jules will create branches, prepare pull requests (PRs), and manage the entire process.- **Detailed Change Logs:** After completing a task, Jules provides a comprehensive outline of the changes made, along with reasoning and code diffs. It also offers real-time activity logs for transparency.- **Audio Summaries:** Jules can create audio summaries of the changes, helping you quickly catch up on what has been done.**How to Use Jules:**1. **Sign Up:** Visit the Jules website and click "Try Jules" to create an account.2. **Select Repository:** Choose the GitHub repository and branch you want Jules to work on.3. **Assign Tasks:** Write a detailed prompt or use the "assign-to-jules" label in a GitHub issue to assign tasks.4. **Review Changes:** Jules will provide a diff of the changes, which you can browse and approve.5. **Merge PRs:** Once you approve the changes, Jules will create a PR, which you can merge into your branch.**Advantages:**- **Increased Productivity:** By offloading repetitive and time-consuming tasks, Jules allows developers to focus on more strategic and creative aspects of their work.- **Consistent Quality:** Jules ensures that code changes are consistent and adhere to best practices.- **Scalability:** The ability to handle multiple tasks simultaneously makes Jules a valuable tool for large and complex projects.**Conclusion:**Jules represents a significant advancement in AI-assisted coding, offering a unique asynchronous approach that can significantly enhance the efficiency and effectiveness of development workflows. Its integration with GitHub and comprehensive task management features make it a powerful tool for developers looking to streamline their coding processes.
We have a summary of what Jules is, let's print it.
result_agent_pattern["messages"][-1].pretty_print()
================================== Ai Message ==================================### Jules: An Asynchronous Coding Agent**Overview:**Jules is an asynchronous coding assistant developed by Google Labs, now available in public beta. It integrates directly with your existing code repositories, such as GitHub, and operates in a secure Google Cloud Virtual Machine (VM). The key feature of Jules is its asynchronous nature, meaning it can work on tasks independently in the background, without constant human oversight.**Key Features:**- **Asynchronous Task Handling:** Jules takes on specific coding tasks, works on them independently, and presents the completed work once ready. This allows developers to focus on strategic tasks and reduce repetitive coding chores.- **Full Codebase Understanding:** Jules clones your entire codebase into a secure cloud VM, where it gains a comprehensive understanding of your project's context. This enables it to make informed decisions and perform tasks more effectively.- **Task Execution:** Jules can handle a variety of tasks, including writing tests, fixing bugs, and building features. It can work on multiple tasks simultaneously, enhancing productivity.- **GitHub Integration:** The tool integrates seamlessly with GitHub, allowing you to assign tasks directly from GitHub issues. Jules will create branches, prepare pull requests (PRs), and manage the entire process.- **Detailed Change Logs:** After completing a task, Jules provides a comprehensive outline of the changes made, along with reasoning and code diffs. It also offers real-time activity logs for transparency.- **Audio Summaries:** Jules can create audio summaries of the changes, helping you quickly catch up on what has been done.**How to Use Jules:**1. **Sign Up:** Visit the Jules website and click "Try Jules" to create an account.2. **Select Repository:** Choose the GitHub repository and branch you want Jules to work on.3. **Assign Tasks:** Write a detailed prompt or use the "assign-to-jules" label in a GitHub issue to assign tasks.4. **Review Changes:** Jules will provide a diff of the changes, which you can browse and approve.5. **Merge PRs:** Once you approve the changes, Jules will create a PR, which you can merge into your branch.**Advantages:**- **Increased Productivity:** By offloading repetitive and time-consuming tasks, Jules allows developers to focus on more strategic and creative aspects of their work.- **Consistent Quality:** Jules ensures that code changes are consistent and adhere to best practices.- **Scalability:** The ability to handle multiple tasks simultaneously makes Jules a valuable tool for large and complex projects.**Conclusion:**Jules represents a significant advancement in AI-assisted coding, offering a unique asynchronous approach that can significantly enhance the efficiency and effectiveness of development workflows. Its integration with GitHub and comprehensive task management features make it a powerful tool for developers looking to streamline their coding processes.
